Model No.: SEA-112SS

Type: Split

Control type: On-off

Power supply: 1Ph-220-240V50Hz

Voltage Range: 155265 V

Cooling Capacity:

1. Btu/h: 12000
2. Capacity: 3517 W

Electrical Data:

1. Rated power Input: 1161 W
2. Rated current: 5.4 A
3. Max current: 7.10 A

Moisture removal:

1. Liters/h: 1.2

Compressor:

1. Model: ASM140V01VDZE
2. Type: Rotary
3. Brand: GMCC
4. Compressor type: T1

Indoor Fan:

1. Model: 22001-000273（AC）
2. Input: 45 W (Broad-ocean/WELLING)
3. Capacitor: 1.5 uF
4. Speed (Hi/Mi/Lo): 1270/1170/1050/900/850 rpm

Outdoor Fan:

1. Model: 22001-000009（AC）
2. Input: 85 W
3. Capacitor: 2.5 uF
4. Speed: 860 rpm

Dimensions and Weight:

1. Indoor Unit: 777×250×201 mm, Net/Gross weight: 8/10 Kg

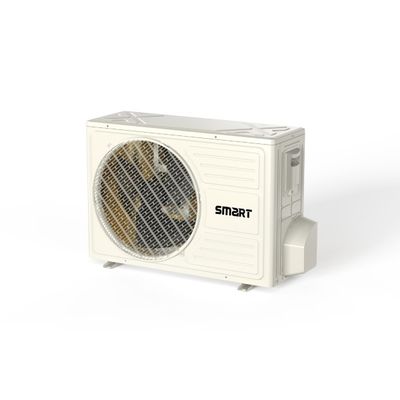

2. Outdoor Unit: 853×349×602 mm, Net/Gross weight: 26/29 Kg

Refrigerant Piping:

1. Liquid side/Gas side: Φ6(1/4'')/Φ9.52(3/8'')
2. Max. refrigerant pipe length: 15 m
3. Max. difference in level: 5 m

Pressure:

1. High (DP): 4.5 MPa
2. Low (SP): 1.9 MPa

Refrigerant: R410A, Refrigerant amount: 0.62 kg

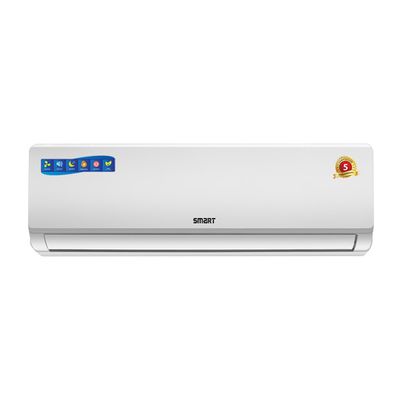

The SMART Branded NON-Inverter 1 TON AC combines efficiency, durability, and affordability, making it the perfect choice for cooling smaller spaces without compromising on performance. Enjoy a comfortable indoor environment all year round with SMART.
